ASP.NET MVC5+EF6+EasyUI 后台管理系统微信公众平台开发

前言

回顾上一节，我们熟悉的了解了消息的请求和响应，这一节我们来建立数据库的表，表的设计蛮复杂

你也可以按自己所分析的情形结构来建表

必须非常熟悉表的结果才能运用这张表，这表表的情形涵盖比较多

思维导图

我这个人比较喜欢用思维导图来分析和表达一些模型：



表结构

根据思维导图，我们可以建立的表可以是3张表：消息表，规则表，类型表

消息表：实际的消息

规则表：文本、图文、语音等

类型表：文本、图文、语音（默认回复，订阅回复）

也可以是两张表：规制表，消息表（+一个类型字段）

我这里只设计一张表：消息表（+一个规则字段+一个类型字段）

设计表结构与个人的平时习惯有关系，我还是喜欢简单的东西，别为了设计而去专门设计，这样只会增加系统的复杂度

CREATE TABLE [dbo].[WC_MessageResponse](    [Id] [varchar](50) NOT NULL,              --主键
    [OfficalAccountId] [varchar](50) NULL,    --所属公众号
    [MessageRule] [int] NULL,                 --消息规则（枚举）
    [Category] [int] NULL,                    --类型（枚举）
    [MatchKey] [varchar](1000) NULL,          --关键字
    [TextContent] [varchar](max) NULL,        --文本内容
    [ImgTextContext] [varchar](max) NULL,     --图文文本内容
    [ImgTextUrl] [varchar](1000) NULL,        --图文图片URL
    [ImgTextLink] [varchar](1000) NULL,       --图文图片超链接
    [MeidaUrl] [varchar](1000) NULL,          --语音URL
    [MeidaLink] [varchar](1000) NULL,         --语音超链接
    [Enable] [bit] NOT NULL,                  --是否启用
    [IsDefault] [bit] NOT NULL,               --是否默认
    [Remark] [varchar](2000) NULL,            --说明
    [Sort] [int] NOT NULL,                    --排序
    [CreateTime] [datetime] NOT NULL,         --创建时间
    [CreateBy] [varchar](50) NOT NULL,        --创建人
    [ModifyTime] [datetime] NOT NULL,         --修改时间
    [ModifyBy] [varchar](50) NULL,            --修改人
 CONSTRAINT [PK_WC_MessageResponse] PRIMARY KEY CLUSTERED (    [Id] ASC)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]GOSET ANSI_PADDING OFFGOALTER TABLE [dbo].[WC_MessageResponse]  WITH CHECK ADD  CONSTRAINT [FK_WC_MessageResponse_WC_OfficalAcconts] FOREIGN KEY([OfficalAccountId])REFERENCES [dbo].[WC_OfficalAccounts] ([Id])ON DELETE CASCADEGOALTER TABLE [dbo].[WC_MessageResponse] CHECK CONSTRAINT [FK_WC_MessageResponse_WC_OfficalAcconts]GO

登录后复制

表对应了两个枚举和关联主表公众号管理的主表

CREATE TABLE [dbo].[WC_OfficalAccounts](    [Id] [varchar](50) NOT NULL,            --主键
    [OfficalId] [varchar](200) NULL,        --公众号的唯一ID
    [OfficalName] [varchar](200) NOT NULL,    --公众号名称
    [OfficalCode] [varchar](200) NOT NULL,  --公众号帐号
    [OfficalPhoto] [varchar](1000) NULL,    --头像
    [OfficalKey] [varchar](500) NULL,        --EncodingAESKey
    [ApiUrl] [varchar](1000) NULL,            --我们的资源服务器
    [Token] [varchar](200) NULL,            --Token
    [AppId] [varchar](200) NULL,            --AppId
    [AppSecret] [varchar](200) NULL,        --Appsecret
    [AccessToken] [varchar](200) NULL,        --访问Token
    [Remark] [varchar](2000) NULL,            --说明
    [Enable] [bit] NOT NULL,                --是否启用
    [IsDefault] [bit] NOT NULL,                --是否为当前默认操作号
    [Category] [int] NOT NULL,                --类别（媒体号，企业号，个人号，开发测试号）
    [CreateTime] [datetime] NOT NULL,        --创建时间
    [CreateBy] [varchar](50) NOT NULL,        --创建人
    [ModifyTime] [datetime] NOT NULL,        --修改时间
    [ModifyBy] [varchar](50) NULL,            --修改人
 CONSTRAINT [PK_WC_OfficalAcconts] PRIMARY KEY CLUSTERED (    [Id] ASC)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]) ON [PRIMARY]

登录后复制

公众号管理在70节

对应的枚举

 public enum WeChatReplyCategory
    {        //文本
        Text =1,        //图文
        Image =2,        //语音
        Voice =3,        //相等，用于回复关键字
        Equal=4,        //包含，用于回复关键字
        Contain = 5
    }    public enum WeChatRequestRuleEnum
    {        /// <summary>
        /// 默认回复，没有处理的        /// </summary>
        Default =0,        /// <summary>
        /// 关注回复        /// </summary>
        Subscriber =1,        /// <summary>
        /// 文本回复        /// </summary>
        Text =2,        /// <summary>
        /// 图片回复        /// </summary>
        Image =3,        /// <summary>
        /// 语音回复        /// </summary>
        Voice =4,        /// <summary>
        /// 视频回复        /// </summary>
        Video =5,        /// <summary>
        /// 超链接回复        /// </summary>
        Link =6,        /// <summary>
        /// LBS位置回复        /// </summary>
        Location =7,
    }

登录后复制

枚举其实对应就是我省掉的其余两张表

到这里，相信表的设计已经非常清晰

后台代码

增删改查非常普通，主要关注点在前端，前端处理提交的消息中，必须包含规则，类型，来指定消息的最终表达

[HttpPost]
        [SupportFilter(ActionName = "Edit")]        public JsonResult PostData(WC_MessageResponseModel model)
        {
            WC_OfficalAccountsModel accountModel = account_BLL.GetCurrentAccount();            if (string.IsNullOrEmpty(model.Id))
            {
                model.Id = ResultHelper.NewId;
            }

            model.CreateBy = GetUserId();
            model.CreateTime = ResultHelper.NowTime;
            model.ModifyBy = GetUserId();
            model.ModifyTime = ResultHelper.NowTime;
            model.OfficalAccountId = accountModel.Id;
            model.Enable = true;
            model.IsDefault = true;            if (m_BLL.PostData(ref errors, model))
            {
                LogHandler.WriteServiceLog(GetUserId(), "Id" + model.Id + ",OfficalAccountId" + model.OfficalAccountId, "成功", "保存", "WC_MessageResponse");                return Json(JsonHandler.CreateMessage(1, Resource.SaveSucceed));
            }            else
            {                string ErrorCol = errors.Error;
                LogHandler.WriteServiceLog(GetUserId(), "Id" + model.Id + ",OfficalAccountId" + model.OfficalAccountId + "," + ErrorCol, "失败", "保存", "WC_MessageResponse");                return Json(JsonHandler.CreateMessage(0, Resource.SaveFail + ErrorCol));
            }

        }

登录后复制

Controller

public bool PostData(ref ValidationErrors errors, WC_MessageResponseModel model)
        {            try
            {

                WC_MessageResponse entity = new WC_MessageResponse();                if (IsExists(model.Id))
                {
                    entity = m_Rep.GetById(model.Id);
                }

                entity.Id = model.Id;
                entity.OfficalAccountId = model.OfficalAccountId;
                entity.MessageRule = model.MessageRule;
                entity.Category = model.Category;
                entity.MatchKey = model.MatchKey;
                entity.TextContent = model.TextContent;
                entity.ImgTextContext = model.ImgTextContext;
                entity.ImgTextUrl = model.ImgTextUrl;
                entity.ImgTextLink = model.ImgTextLink;
                entity.MeidaUrl = model.MeidaUrl;
                entity.Enable = model.Enable;
                entity.IsDefault = model.IsDefault;
                entity.Remark = model.Remark;
                entity.CreateTime = model.CreateTime;
                entity.CreateBy = model.CreateBy;
                entity.Sort = model.Sort;
                entity.ModifyTime = model.ModifyTime;
                entity.ModifyBy = model.ModifyBy;                if (m_Rep.PostData(entity))
                {                    return true;
                }                else
                {
                    errors.Add(Resource.NoDataChange);                    return false;
                }

            }            catch (Exception ex)
            {
                errors.Add(ex.Message);
                ExceptionHander.WriteException(ex);                return false;
            }
        }

登录后复制

BLL

  public bool PostData(WC_MessageResponse model)
        {            //如果所有开关都关掉，证明不启用回复
            if (model.Category == null)
            {                return true;
            }            //全部设置为不默认
            ExecuteSqlCommand(string.Format("update [dbo].[WC_MessageResponse] set IsDefault=0 where OfficalAccountId ='{0}' and MessageRule={1}", model.OfficalAccountId, model.MessageRule));            //默认回复和订阅回复,且不是图文另外处理，因为他们有3种模式，但是只有一个是默认的
            if (model.Category!= (int)WeChatReplyCategory.Image &amp;&amp; (model.MessageRule == (int)WeChatRequestRuleEnum.Default || model.MessageRule == (int)WeChatRequestRuleEnum.Subscriber))
            {                //查看数据库是否存在数据
                var entity = Context.WC_MessageResponse.Where(p =&gt; p.OfficalAccountId == model.OfficalAccountId &amp;&amp; p.MessageRule == model.MessageRule &amp;&amp; p.Category == model.Category).FirstOrDefault();                if (entity != null)
                {                    //删除原来的                    Context.WC_MessageResponse.Remove(entity);
                }
            }            //全部设置为默认
            ExecuteSqlCommand(string.Format("update [dbo].[WC_MessageResponse] set IsDefault=1 where OfficalAccountId ='{0}' and MessageRule={1} and Category={2}", model.OfficalAccountId, model.MessageRule,model.Category));            //修改
            if(IsExist(model.Id))
            {
               Context.Entry<wc_messageresponse>(model).State = EntityState.Modified;               return Edit(model);
            }            else {
               return Create(model);
            }
        }</wc_messageresponse>

登录后复制

DAL

DAL层有必要来说明一下

默认回复和关注回复有3种类型：文本，图文，语音（但是只能有一种，所以有IsDefault字段来表明执行哪种回复）所以这两个规则必须另外处理，且看DAL的代码执行的SQL语句便明白。

所以我们尽情的设计前端吧！

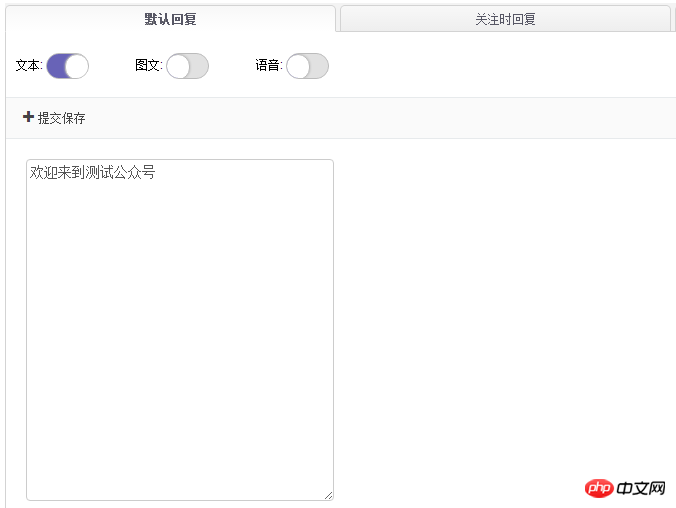

前端如何设计？

我们来看一个思维导图：



前端完整代码

<style>
    .formtable td {
        vertical-align: top;
        padding: 10px;
    }

    .formtable th {
        text-align: left;
        padding: 10px;
        height: 30px;
    }

    .formtablenormal {
        width: 500px;
    }

        .formtablenormal th {
            border: 0px;
            text-align: right;
        }

        .formtablenormal td {
            border: 0px;
            vertical-align: middle;
        }</style><script>    //1文本2图文3语音
    var Category = {
        Text: 1,
        Image: 2,
        Voice: 3,
        Equal: 4,
        Contain: 5
    };    //    var RequestRule = {
        Default: 0,
        Subscriber: 1,
        Text: 2,
        Image: 3,
        Voice: 4,
        Video: 5,
        Link: 6,
        Location: 7
    };

    function initDefault() {
        $('#swText0').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $('#swImage0').switchbutton("uncheck");
                    $('#swVoice0').switchbutton("uncheck");
                    $("#p01").show();
                    $("#p02,#p03").hide();
                    $("#Category").val(Category.Text);
                }
            }
        });
        $('#swImage0').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $('#swVoice0').switchbutton("uncheck");
                    $('#swText0').switchbutton("uncheck");
                    $("#p02").show();
                    $("#p01,#p03").hide();
                    $("#Category").val(Category.Image);
                    $("#List0").datagrid("resize");
                }
            }
        });
        $('#swVoice0').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $('#swImage0').switchbutton("uncheck");
                    $('#swText0').switchbutton("uncheck");
                    $("#p03").show();
                    $("#p01,#p02").hide();
                    $("#Category").val(Category.Voice);
                }
            }
        });        //文本
        $.post('@Url.Action("GetList")', {
            page: 1,
            rows: 1,
            category: Category.Text,
            messageRule: RequestRule.Default
        },
        function(data) {            var rows = data.rows;            for (var i = 0; i < rows.length; i++) {                if (rows[i].Category == Category.Text) {
                    $("#Text0").val(rows[i].TextContent);                    if (rows[i].IsDefault) {
                        $('#swText0').switchbutton("check");
                        $('#swImage0').switchbutton("uncheck");
                        $('#swVoice0').switchbutton("uncheck");
                    }
                }
            }
        });        //语音
        $.post('@Url.Action("GetList")', {
            page: 1,
            rows: 1,
            category: Category.Voice,
            messageRule: RequestRule.Default
        },
       function (data) {           var rows = data.rows;           for (var i = 0; i < rows.length; i++) {               if (rows[i].Category == Category.Voice) {
                   $("#VoiceTitle0").val(rows[i].TextContent);
                   $("#VoiceContent0").val(rows[i].Remark);
                   $("#VoiceUrl0").val(rows[i].MeidaUrl);                   if (rows[i].IsDefault) {
                       $('#swVoice0').switchbutton("check");
                       $('#swText0').switchbutton("uncheck");
                       $('#swImage0').switchbutton("uncheck");
                   }
               }
           }
       });

        $('#List0').datagrid({
            url: '@Url.Action("GetList")?messageRule=' + RequestRule.Default + '&category=' + Category.Image,
            width: SetGridWidthSub(40),
            methord: 'post',
            height: SetGridHeightSub(175),
            fitColumns: true,
            sortName: 'Sort',
            sortOrder: 'asc',
            idField: 'Id',
            pageSize: 15,
            pageList: [15, 20, 30, 40, 50],
            pagination: true,
            striped: true,            //奇偶行是否区分
            singleSelect: true,
            onLoadSuccess: function (data) {                if (data.rows.length > 0)
                {                    if (data.rows[0].IsDefault) {
                        $('#swImage0').switchbutton("check");
                        $('#swText0').switchbutton("uncheck");
                        $('#swVoice0').switchbutton("uncheck");
                        $("#Category").val(Category.Image);
                    }
                }
            },            //单选模式            //rownumbers: true,//行号            columns: [[{
                field: 'Id',
                title: 'Id',
                width: 80,
                hidden: true
            },
            {
                field: 'TextContent',
                title: '标题',
                width: 80,
                sortable: true
            },
            {
                field: 'ImgTextUrl',
                title: '图片',
                width: 50,
                sortable: true,
                align: 'center', formatter: function (value) { return "<img     style="max-width:90%" + value + "'/ alt="ASP.NET MVC5+EF6+EasyUI 后台管理系统微信公众平台开发" >" }
            },
            {
                field: 'ImgTextLink',
                title: '超链接',
                width: 80,
                sortable: true
            },
            {
                field: 'ImgTextContext',
                title: '回复内容',
                width: 180,
                sortable: true
            },

            ]]
        });

        $("#btnCreate02").unbind().click(function () {
            $("#modalwindow0").window({
                title: '@Resource.Create',
                width: 700,
                height: 500,
                iconCls: 'fa fa-plus'
            }).window('open');
        });



        $("#btnSava01").unbind().click(function() {            //默认回复
            $("#MessageRule").val(RequestRule.Default);            if ($.trim($("#Text0").val())=="")
            {
                $.messager.alert('@Resource.Tip', '内容必须填写！', 'warning');                return;
            }
            $("#TextContent").val($.trim($("#Text0").val()));            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                    data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });




        $("#btnSava02").unbind().click(function () {            if ($.trim($("#ImageTitle0").val()) == "") {
                $.messager.alert('@Resource.Tip', '标题必须填写！', 'warning');                return;
            }            if ($.trim($("#ImageUrl0").val()) == "") {
                $.messager.alert('@Resource.Tip', '图片必须上传！', 'warning');                return;
            }            if ($.trim($("#Sort0").val()) == "") {
                $.messager.alert('@Resource.Tip', '排序必须填写！', 'warning');                return;
            }            //图文回复
            $("#MessageRule").val(RequestRule.Default);
            $("#TextContent").val($("#ImageTitle0").val());
            $("#ImgTextUrl").val($("#ImageUrl0").val());
            $("#ImgTextContext").val($("#ImageContent0").val());
            $("#ImgTextLink").val($("#ImageLink0").val());
            $("#Sort").val($("#Sort0").val());

            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {                    if (data.type == 1) {
                        $("#Id").val("");
                        $("#List0").datagrid('reload');
                        $("#modalwindow0").window('close');
                        $("#ImageTitle0").val("");
                        $("#form02 img").attr("src", "/Content/Images/NotPic.jpg");
                        $("#ImageContent0").val("");
                        $("#ImageLink0").val("");
                        $("#Sort0").val(0);
                        $('#FileUpload02').val('');
                    }
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });
        $("#btnSava03").unbind().click(function() {            //默认回复
            $("#MessageRule").val(RequestRule.Default);            if ($.trim($("#Text0").val())=="")
            {                if ($.trim($("#VoiceTitle0").val()) == "") {
                    $.messager.alert('@Resource.Tip', '标题必须填写！', 'warning');                    return;
                }                if ($.trim($("#VoiceUrl0").val()) == "") {
                    $.messager.alert('@Resource.Tip', '必须上传语音！', 'warning');                    return;
                }
                $("#TextContent").val($("#VoiceTitle0").val());
                $("#MeidaUrl").val($("#VoiceUrl0").val());
                $("#Remark").val($("#VoiceContent0").val());
            }            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });
    }

    function initSubscriber() {
         $('#swText1').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $('#swImage1').switchbutton("uncheck");
                    $('#swVoice1').switchbutton("uncheck");
                    $("#p11").show();
                    $("#p12,#p13").hide();
                    $("#Category").val(Category.Text);
                }
            }
        });
        $('#swImage1').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $('#swVoice1').switchbutton("uncheck");
                    $('#swText1').switchbutton("uncheck");
                    $("#p12").show();
                    $("#p11,#p13").hide();
                    $("#Category").val(Category.Image);
                    $("#List1").datagrid("resize");
                }
            }
        });
        $('#swVoice1').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $('#swImage1').switchbutton("uncheck");
                    $('#swText1').switchbutton("uncheck");
                    $("#p13").show();
                    $("#p11,#p12").hide();
                    $("#Category").val(Category.Voice);
                }
            }
        });        //文本
        $.post('@Url.Action("GetList")', {
            page: 1,
            rows: 1,
            category: Category.Text,
            messageRule: RequestRule.Subscriber
        },
        function(data) {            var rows = data.rows;            for (var i = 0; i < rows.length; i++) {                if (rows[i].Category == Category.Text) {
                    $("#Text1").val(rows[i].TextContent);                    if (rows[i].IsDefault) {
                        $('#swText1').switchbutton("check");
                        $('#swImage1').switchbutton("uncheck");
                        $('#swVoice1').switchbutton("uncheck");
                    }
                }
            }
        });        //语音
        $.post('@Url.Action("GetList")', {
            page: 1,
            rows: 1,
            category: Category.Voice,
            messageRule: RequestRule.Subscriber
        },
       function (data) {           var rows = data.rows;           for (var i = 0; i < rows.length; i++) {               if (rows[i].Category == Category.Voice) {
                   $("#VoiceTitle1").val(rows[i].TextContent);
                   $("#VoiceContent1").val(rows[i].Remark);                   if (rows[i].IsDefault) {
                       $('#swVoice1').switchbutton("check");
                       $('#swText1').switchbutton("uncheck");
                       $('#swImage1').switchbutton("uncheck");
                   }
               }
           }
       });

        $('#List1').datagrid({
            url: '@Url.Action("GetList")?messageRule=' + RequestRule.Subscriber + '&category=' + Category.Image,
            width: SetGridWidthSub(40),
            methord: 'post',
            height: SetGridHeightSub(175),
            fitColumns: true,
            sortName: 'Sort',
            sortOrder: 'asc',
            idField: 'Id',
            pageSize: 15,
            pageList: [15, 20, 30, 40, 50],
            pagination: true,
            striped: true,            //奇偶行是否区分
            singleSelect: true,
            onLoadSuccess: function (data) {                if (data.rows.length > 0)
                {                    if (data.rows[0].IsDefault) {
                        $('#swImage1').switchbutton("check");
                        $('#swText1').switchbutton("uncheck");
                        $('#swVoice1').switchbutton("uncheck");
                    }
                }
            },            //单选模式            //rownumbers: true,//行号            columns: [[{
                field: 'Id',
                title: 'Id',
                width: 80,
                hidden: true
            },
            {
                field: 'TextContent',
                title: '标题',
                width: 80,
                sortable: true
            },
            {
                field: 'ImgTextUrl',
                title: '图片',
                width: 50,
                sortable: true,
                align: 'center', formatter: function (value) { return "<img     style="max-width:90%" + value + "'/ alt="ASP.NET MVC5+EF6+EasyUI 后台管理系统微信公众平台开发" >" }
            },
            {
                field: 'ImgTextLink',
                title: '超链接',
                width: 80,
                sortable: true
            },
            {
                field: 'ImgTextContext',
                title: '回复内容',
                width: 180,
                sortable: true
            },

            ]]
        });

        $("#btnCreate12").unbind().click(function () {
            $("#modalwindow1").window({
                title: '@Resource.Create',
                width: 700,
                height: 500,
                iconCls: 'fa fa-plus'
            }).window('open');
        });


        $("#btnSava11").unbind().click(function() {            //默认回复
            $("#MessageRule").val(RequestRule.Subscriber);            if ($.trim($("#Text1").val())=="")
            {
                $.messager.alert('@Resource.Tip', '内容必须填写！', 'warning');                return;
            }
            $("#TextContent").val($.trim($("#Text1").val()));            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                    data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });

        $("#btnSava12").unbind().click(function () {            if ($.trim($("#ImageTitle1").val()) == "") {
                $.messager.alert('@Resource.Tip', '标题必须填写！', 'warning');                return;
            }            if ($.trim($("#ImageUrl1").val()) == "") {
                $.messager.alert('@Resource.Tip', '图片必须上传！', 'warning');                return;
            }            if ($.trim($("#Sort1").val()) == "") {
                $.messager.alert('@Resource.Tip', '排序必须填写！', 'warning');                return;
            }            //图文回复
            $("#MessageRule").val(RequestRule.Subscriber);
            $("#TextContent").val($("#ImageTitle1").val());
            $("#ImgTextUrl").val($("#ImageUrl1").val());
            $("#ImgTextContext").val($("#ImageContent1").val());
            $("#ImgTextLink").val($("#ImageLink1").val());
            $("#Sort").val($("#Sort1").val());
            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {                    if (data.type == 1) {
                        $("#Id").val("");
                        $("#List1").datagrid('reload');
                        $("#modalwindow1").window('close');
                        $("#ImageTitle1").val("");
                        $("#form12 img").attr("src", "/Content/Images/NotPic.jpg");
                        $("#ImageContent1").val("");
                        $("#ImageLink1").val("");
                        $("#Sort1").val(0);
                        $('#FileUpload12').val('');
                    }
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });
        $("#btnSava13").unbind().click(function() {            //默认回复
            $("#MessageRule").val(RequestRule.Subscriber);            if ($.trim($("#Text1").val())=="")
            {                if ($.trim($("#VoiceTitle1").val()) == "") {
                    $.messager.alert('@Resource.Tip', '标题必须填写！', 'warning');                    return;
                }                if ($.trim($("#VoiceUrl1").val()) == "") {
                    $.messager.alert('@Resource.Tip', '必须上传语音！', 'warning');                    return;
                }
                $("#TextContent").val($("#VoiceTitle1").val());
                $("#MeidaUrl").val($("#VoiceUrl1").val());
                $("#Remark").val($("#VoiceContent1").val());
            }            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });
    }

    function initText() {
        $("#Category").val(Category.Equal);
        $('#List2').datagrid({
            url: '@Url.Action("GetList")?messageRule=' + RequestRule.Text,
            width: SetGridWidthSub(40),
            methord: 'post',
            height: SetGridHeightSub(100),
            fitColumns: true,
            sortName: 'CreateTime',
            sortOrder: 'desc',
            idField: 'Id',
            pageSize: 15,
            pageList: [15, 20, 30, 40, 50],
            pagination: true,
            striped: true,            //奇偶行是否区分
            singleSelect: true,            //单选模式            //rownumbers: true,//行号            columns: [[{
                field: 'Id',
                title: 'Id',
                width: 80,
                hidden: true
            },
            {
                field: 'Category',
                title: 'Category',
                width: 80,
                sortable: true,
                hidden: true
            },
            {
                field: 'MatchKey',
                title: '关键字',
                width: 80,
                sortable: true,
                formatter: function (value,row,index){                    if (row.Category == Category.Equal) {                        return "(完全匹配)" + value
                    } else {                        return "(模糊匹配)" + value
                    }
                }
            },
            {
                field: 'TextContent',
                title: '回复内容',
                width: 80,
                sortable: true
            },

            ]]
        });

        $('#swMessageRule2').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $("#Category").val(Category.Equal);
                } else {
                    $("#Category").val(Category.Contain);
                }
            }
        });
        $("#btnCreate2").unbind().click(function () {
            $("#modalwindow2").window({
                title: '@Resource.Create',
                width: 700,
                height: 400,
                iconCls: 'fa fa-plus'
            }).window('open');
        });

        $("#btnSava2").unbind().click(function () {            if ($.trim($("#TextMatchKey2").val()) == "") {
                $.messager.alert('@Resource.Tip', '关键字必须填写！', 'warning');                return;
            }            if ($.trim($("#Text2").val()) == "") {
                $.messager.alert('@Resource.Tip', '内容必须填写！', 'warning');                return;
            }            //文本回复
            $("#MessageRule").val(RequestRule.Text);
            $("#MatchKey").val($.trim($("#TextMatchKey2").val()));
            $("#TextContent").val($("#Text2").val());            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {                    if (data.type == 1) {
                        $("#Id").val("");
                        $("#List2").datagrid('reload');
                        $("#modalwindow2").window('close');
                        $("#TextMatchKey2").val("");
                        $("#Text2").val("");
                    }
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });
    }


    function initImage() {
        $("#Category").val(Category.Equal);
        $('#List31').datagrid({
            url: '@Url.Action("GetListProperty")?messageRule=' + RequestRule.Image,
            width: 300,
            methord: 'post',
            height: SetGridHeightSub(100),
            fitColumns: true,
            sortName: 'CreateTime',
            sortOrder: 'desc',
            idField: 'Id',
            pageSize: 15,
            pageList: [15, 20, 30, 40, 50],
            pagination: true,
            striped: true,            //奇偶行是否区分
            singleSelect: true,
            onClickRow: function (index,data) {                var row = $('#List31').datagrid('getSelected');                if (row != null)
                {
                    $('#List3').datagrid({url:'@Url.Action("GetList")?messageRule='+RequestRule.Image+'&category='+row.Category+'&matchKey='+row.MatchKey});
                }
            },            //单选模式            //rownumbers: true,//行号            columns: [[{
                field: 'Id',
                title: 'Id',
                width: 80,
                hidden: true
            },
            {
                field: 'Category',
                title: 'Category',
                width: 80,
                sortable: true,
                hidden: true
            },
            {
                field: 'MatchKey',
                title: '关键字',
                width: 130,
                sortable: true,
                formatter: function (value, row, index) {                    if (row.Category == Category.Equal) {                        return "(完全匹配)" + value
                    } else {                        return "(模糊匹配)" + value
                    }
                }
            },
            {
                field: 'CreateTime',
                title: '创建时间',
                width: 80,
                sortable: true
            },

            ]]
        }).datagrid('getPager').pagination({ showPageList: true, showRefresh: false, displayMsg: '' });


        $('#List3').datagrid({
            url:'@Url.Action("GetList")?messageRule='+RequestRule.Image+'&category=x&matchKey=x',
            width: SetGridWidthSub(340),
            methord: 'post',
            height: SetGridHeightSub(100),
            fitColumns: true,
            sortName: 'Sort',
            sortOrder: 'asc',
            idField: 'Id',
            pageSize: 15,
            pageList: [15, 20, 30, 40, 50],
            pagination: true,
            striped: true,            //奇偶行是否区分
            singleSelect: true,            //单选模式            //rownumbers: true,//行号            columns: [[{
                field: 'Id',
                title: 'Id',
                width: 80,
                hidden: true
            },
            {
                field: 'Category',
                title: 'Category',
                width: 80,
                sortable: true,
                hidden: true
            },
            {
                field: 'TextContent',
                title: '标题',
                width: 80,
                sortable: true
            },
            {
                field: 'MatchKey',
                title: '关键字',
                width: 80,
                sortable: true,
                formatter: function (value,row,index){                    if (row.Category == Category.Equal) {                        return "(完全匹配)" + value
                    } else {                        return "(模糊匹配)" + value
                    }
                }
            },
            {
                field: 'ImgTextUrl',
                title: '图片',
                width: 50,
                sortable: true,
                align: 'center', formatter: function (value) { return "<img     style="max-width:90%" + value + "'/ alt="ASP.NET MVC5+EF6+EasyUI 后台管理系统微信公众平台开发" >" }
            },
            {
                field: 'ImgTextLink',
                title: '超链接',
                width: 80,
                sortable: true
            },
            {
                field: 'ImgTextContext',
                title: '回复内容',
                width: 180,
                sortable: true
            },
            {
                field: 'Sort',
                title: '排序',
                width: 50,
                sortable: true
            },
            ]]
        });

        $('#swMessageRule3').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $("#Category").val(Category.Equal);
                } else {
                    $("#Category").val(Category.Contain);
                }
            }
        });
        $("#btnCreate3").unbind().click(function () {
            $("#modalwindow3").window({
                title: '@Resource.Create',
                width: 700,
                height: 550,
                iconCls: 'fa fa-plus'
            }).window('open');
        });


        $("#btnSava3").unbind().click(function () {            if ($.trim($("#ImageTitle3").val()) == "") {
                $.messager.alert('@Resource.Tip', '标题必须填写！', 'warning');                return;
            }            if ($.trim($("#TextMatchKey3").val()) == "") {
                $.messager.alert('@Resource.Tip', '关键字必须填写！', 'warning');                return;
            }            if ($.trim($("#ImageUrl3").val()) == "") {
                $.messager.alert('@Resource.Tip', '图片必须上传！', 'warning');                return;
            }            //图文回复
            $("#MessageRule").val(RequestRule.Image);
            $("#MatchKey").val($.trim($("#TextMatchKey3").val()));
            $("#TextContent").val($("#ImageTitle3").val());
            $("#ImgTextUrl").val($("#ImageUrl3").val());
            $("#ImgTextContext").val($("#ImageContent3").val());
            $("#ImgTextLink").val($("#ImageLink3").val());
            $("#Sort").val($("#Sort3").val());            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {                    if (data.type == 1) {
                        $("#Id").val("");
                        $("#List3").datagrid('reload');
                        $("#List31").datagrid('reload');
                        $("#modalwindow3").window('close');
                        $("#ImageTitle3").val("");
                        $("#form3 img").attr("src", "/Content/Images/NotPic.jpg");
                        $("#ImageContent3").val("");
                        $("#ImageLink3").val("");
                        $("#Sort3").val(0);
                        $('#FileUpload3').val('');
                        $("#TextMatchKey3").val('');
                    }
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });
    }

    function initVoice() {
        $("#Category").val(Category.Equal);
        $('#List4').datagrid({
            url: '@Url.Action("GetList")?messageRule=' + RequestRule.Voice,
            width: SetGridWidthSub(40),
            methord: 'post',
            height: SetGridHeightSub(100),
            fitColumns: true,
            sortName: 'CreateTime',
            sortOrder: 'desc',
            idField: 'Id',
            pageSize: 15,
            pageList: [15, 20, 30, 40, 50],
            pagination: true,
            striped: true,            //奇偶行是否区分
            singleSelect: true,            //单选模式            //rownumbers: true,//行号            columns: [[{
                field: 'Id',
                title: 'Id',
                width: 80,
                hidden: true
            },
            {
                field: 'Category',
                title: 'Category',
                width: 80,
                sortable: true,
                hidden: true
            },
            {
                field: 'TextContent',
                title: '标题',
                width: 80,
                sortable: true
            },
            {
                field: 'MatchKey',
                title: '关键字',
                width: 80,
                sortable: true,
                formatter: function (value,row,index){                    if (row.Category == Category.Equal) {                        return "(完全匹配)" + value
                    } else {                        return "(模糊匹配)" + value
                    }
                }
            },
            {
                field: 'MeidaUrl',
                title: '语音',
                width: 80,
                sortable: true,
                align: 'center', formatter: function (value) { return "<img     style="max-width:90%" + value + "'/ alt="ASP.NET MVC5+EF6+EasyUI 后台管理系统微信公众平台开发" >" }
            },
            {
                field: 'ImgTextLink',
                title: '超链接',
                width: 80,
                sortable: true
            },
            {
                field: 'ImgTextContext',
                title: '回复内容',
                width: 80,
                sortable: true
            },

            ]]
        });

        $('#swMessageRule4').switchbutton({
            onChange: function(checked) {                if (checked) {
                    $("#Category").val(Category.Equal);
                } else {
                    $("#Category").val(Category.Contain);
                }
            }
        });
        $("#btnCreate4").unbind().click(function() {
            $("#modalwindow4").window({
                title: '@Resource.Create',
                width: 700,
                height: 500,
                iconCls: 'fa fa-plus'
            }).window('open');
        });


        $("#btnSava4").unbind().click(function () {            if ($.trim($("#VoiceTitle4").val()) == "") {
                $.messager.alert('@Resource.Tip', '标题必须填写！', 'warning');                return;
            }            if ($.trim($("#TextMatchKey4").val()) == "") {
                $.messager.alert('@Resource.Tip', '关键字必须填写！', 'warning');                return;
            }            if ($.trim($("#VoiceUrl4").val()) == "") {
                $.messager.alert('@Resource.Tip', '必须上传语音！', 'warning');                return;
            }            //图文回复
            $("#MessageRule").val(RequestRule.Voice);
            $("#MatchKey").val($("#TextMatchKey4").val());
            $("#TextContent").val($("#VoiceTitle4").val());
            $("#MeidaUrl").val($("#VoiceUrl4").val());
            $("#Remark").val($("#VoiceContent4").val());            if ($("#form").valid()) {
                $.ajax({
                    url: "@Url.Action("PostData")",
                    type: "Post",
                data: $("#form").serialize(),
                dataType: "json",
                success: function(data) {                    if (data.type == 1) {
                        $("#Id").val("");
                        $("#List4").datagrid('reload');
                        $("#modalwindow4").window('close');
                        $("#TextMatchKey4").val("");
                        $("#VoiceTitle4").val("");
                        $("#VoiceUrl4").val("");
                        $("#VoiceContent4").val("");
                        $("#FileUpload4").val("");
                        $("#form3 img").attr("src", "/Content/Images/NotPic.jpg");
                    }
                    $.messageBox5s('@Resource.Tip', data.message);
                }
            });
        }
        });
    }
    $(function() {
        $('#tt').tabs({
            justified: true,
            width: '100%',
            height: $(window).height() - 20
        });
        $('#tt').tabs({
            onSelect: function(title, index) {                switch (index) {                    case RequestRule.Default:
                        initDefault();                        break;                    case RequestRule.Subscriber:
                        initSubscriber();                        break;                    case RequestRule.Text:
                        initText();                        break;                    case RequestRule.Image:
                        initImage();                        break;                    case RequestRule.Voice:
                        initVoice();                        break;
                }
            }
        });        //初始化第一个标签        initDefault();        //自动宽高        $(window).resize(function() {
            $('#tt').tabs({
                height:$(window).height() - 20
            });            //$('#List2').datagrid('resize', {            //    width: SetGridWidthSub(40),            //    height: SetGridHeightSub(100)            //});
        });
    });
    $(function () {
        $('input.textbox').validatebox().bind('blur', function () {
            $(this).validatebox('enableValidation').validatebox('validate');
        });
    })</script>

登录后复制























                            文本: @Html.SwitchButtonByEdit(“swText0”, false)                                                     图文: @Html.SwitchButtonByEdit(“swImage0”, false)                                                     语音: @Html.SwitchButtonByEdit(“swVoice0”, false)

当前操作公众号：@ViewBag.CurrentOfficalAcount







                        @Html.ToolButton(“btnSava01”, “fa fa-plus”, “提交保存”, ref perm, “Edit”, false)





                        @Html.ToolButton(“btnCreate02”, “fa fa-search”, “添加回复”, ref perm, “Edit”, false)





                            @Html.ToolButton(“btnSava02”, “fa fa-search”, “提交保存”, ref perm, “Edit”, false)



















标题:
图片:
                                                                                                                           @Resource.Uploading
内容:
链接:
排序:









                        @Html.ToolButton(“btnSava03”, “fa fa-plus”, “提交保存”, ref perm, “Edit”, false)











标题:
语音:                                                                                                                                                                                                                                                                                                                    @Resource.Uploading
描述:





















                            文本: @Html.SwitchButtonByEdit(“swText1”, false)                                                     图文: @Html.SwitchButtonByEdit(“swImage1”, false)                                                     语音: @Html.SwitchButtonByEdit(“swVoice1”, false)

当前操作公众号：@ViewBag.CurrentOfficalAcount







                        @Html.ToolButton(“btnSava11”, “fa fa-plus”, “提交保存”, ref perm, “Edit”, false)





                        @Html.ToolButton(“btnCreate12”, “fa fa-search”, “添加回复”, ref perm, “Edit”, false)                         @Html.ToolButton(“btnEdit12”, “fa fa-search”, “编辑”, ref perm, “Edit”, true)                         @Html.ToolButton(“btnDelete12”, “fa fa-search”, “删除”, ref perm, “Delete”, false)





                            @Html.ToolButton(“btnSava12”, “fa fa-search”, “提交保存”, ref perm, “Edit”, false)



















标题:
图片:
                                                                                                                           @Resource.Uploading
内容:
链接:
排序:









                        @Html.ToolButton(“btnSava13”, “fa fa-plus”, “提交保存”, ref perm, “Edit”, false)

















标题:
语音:                                                                                                                                                                                       @Resource.Uploading
描述:





                    @Html.ToolButton(“btnCreate2”, “fa fa-search”, “添加回复”, ref perm, “Edit”, true)                     @Html.ToolButton(“btnEdit2”, “fa fa-search”, “编辑”, ref perm, “Edit”, true)                     @Html.ToolButton(“btnDelete2”, “fa fa-search”, “删除”, ref perm, “Delete”, false)

                        当前操作公众号: @ViewBag.CurrentOfficalAcount





                        @Html.ToolButton(“btnSava2”, “fa fa-search”, “提交保存”, ref perm, “Edit”, false)

                            当前操作公众号: @ViewBag.CurrentOfficalAcount





























关键字:
规则:                                  @Html.SwitchButtonByEdit(“swMessageRule2”, true, “模糊匹配(关键字包含内容) “, “完全匹配(内容与关键字完全匹配)”, “280”)
内容:







                    @Html.ToolButton(“btnCreate3”, “fa fa-search”, “添加回复”, ref perm, “Edit”, true)                     @Html.ToolButton(“btnEdit3”, “fa fa-search”, “编辑”, ref perm, “Edit”, true)                     @Html.ToolButton(“btnDelete3”, “fa fa-search”, “删除”, ref perm, “Delete”, false)

                        当前操作公众号: @ViewBag.CurrentOfficalAcount





                        @Html.ToolButton(“btnSava3”, “fa fa-search”, “提交保存”, ref perm, “Edit”, false)

                            当前操作公众号: @ViewBag.CurrentOfficalAcount





































标题:
关键字:
规则:                                  @Html.SwitchButtonByEdit(“swMessageRule3”, true, “模糊匹配(关键字包含内容) “, “完全匹配(内容与关键字完全匹配)”, “280”)
图片:
                                                                                                               @Resource.Uploading
内容:
链接:
排序:









                    @Html.ToolButton(“btnCreate4”, “fa fa-search”, “添加回复”, ref perm, “Edit”, false)                     @Html.ToolButton(“btnEdit4”, “fa fa-search”, “编辑”, ref perm, “Edit”, true)                     @Html.ToolButton(“btnDelete4”, “fa fa-search”, “删除”, ref perm, “Delete”, false)

                        当前操作公众号: @ViewBag.CurrentOfficalAcount





                        @Html.ToolButton(“btnSava4”, “fa fa-search”, “提交保存”, ref perm, “Edit”, false)

                            当前操作公众号: @ViewBag.CurrentOfficalAcount

































标题:
关键字:
规则:                                  @Html.SwitchButtonByEdit(“swMessageRule4”, true, “模糊匹配(关键字包含内容) “, “完全匹配(内容与关键字完全匹配)”, “280”)
语音:                                                                                                                                                                                       @Resource.Uploading
描述:



                         @*



*@             @*







*@

View Code

利用前端的思维导图，来快速理解前端代码，和应用于实际

总结

消息的管理是非常有技巧的一件事

1.消息在没有任务回复的情况 下，我们应该启用默认回复，要不用户会得不到回应，丢失体验

2.关键字的设计一般是一环扣一环，是有引导作用的

   比如：关键字：（我要）   回复： 按1加入获得礼品一份，按2直接获得50元

　　　　关键字：（1）       回复： 按3获得铁观音茶一份，按4获得普洱茶

　　　　关键字：（3或4）  回复：请回复您的地址和电话及收件人

   这样我们将获得系统与用户之间的完整对话，当然我们也要对用户最后的信息进行处理

以上就是ASP.NET MVC5+EF6+EasyUI 后台管理系统微信公众平台开发的详细内容，更多请关注GTHOST其它相关文章！

您可能还喜欢...
